solas rbx-203x yamaha hub kit

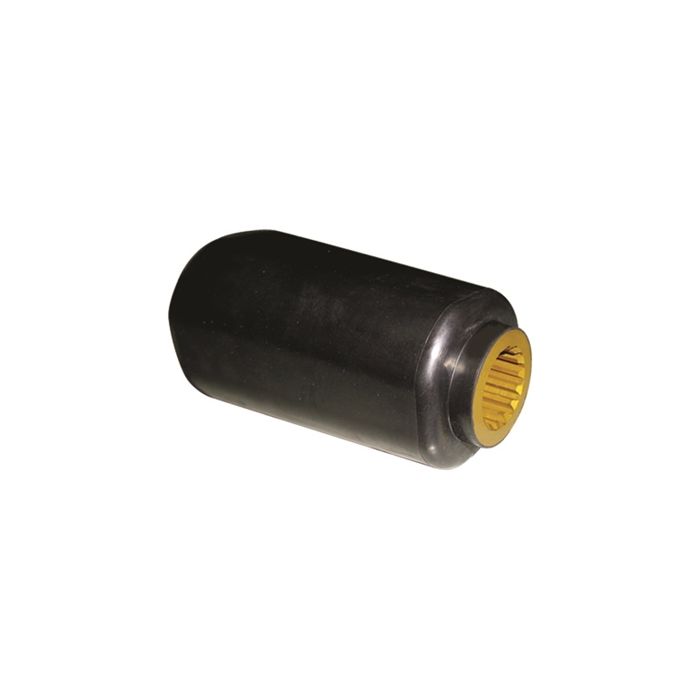

YAMAHA 200-250HP VMAX SHO V6 with two-piece thrust washer system. ※ For engines with a one-piece thrust washer system, either use RBX-203 / 203B or need to replace OEM Thrust Washer (part#60X-45987-10-00) when installing RBX-203X ※ It is very important to refer to your Engine’s Owner Manual for important safety precautions when installing the propeller. Use the original propeller hardware thrust washer, spacer, locking tab, nut, and cotter pin depending on engine/drive manufacturer. This is a Yamaha installation instruction. 1) Put the OEM Thrust Washer & Thrust Washer Spacer(#81013352) on propeller shaft just as it came off. The taper on the OEM Thrust Washer should mate properly with the taper on the propeller shaft. 2) Put the Rubex RBX Hub (#81223150) into the rear of the propeller’s hub cavity (boat side). The splines on the Rubex RBX Hub (#81223150) should face towards the front of the propeller (tips of the blades). The Rubex RBX Hub (#81223150) should slide ¾ or more into propeller hub cavity or it may be backwards. 3) Press or tap gently the Rubex RBX Hub (#81223150) so the propeller hub is flush with the hub cavity. 4) Grease the propeller shaft. 5) Slide the propeller assembly onto the propeller shaft. 6) Install Aft Spacer (#81053441) . Consult your engine/drive manual. 7) Install Flat Washer (#81061140) if required. Consult your engine/drive manual. 8) Install the shaft nut. Consult your engine/drive manual for proper torque. 9) Install the cotter pin. Consult your engine/drive manual for proper torque
